Drawing review and inspection
Inspection tied to the drawing
Quality requirements begin with the drawing and the details agreed before production.
How we work
A practical inspection path
- 01
Review the drawing
Identify the requirements, features and inspection needs that matter to the part.
- 02
Clarify before production
Raise questions before machining when a requirement or measurement approach needs confirmation.
- 03
Plan and cross-check
Use the agreed drawing and inspection needs to guide production checks and the final cross-check.
- 04
Communicate the result
Keep inspection communication attached to the order and discuss rework when completed work does not meet the agreed requirement.
Factory evidence

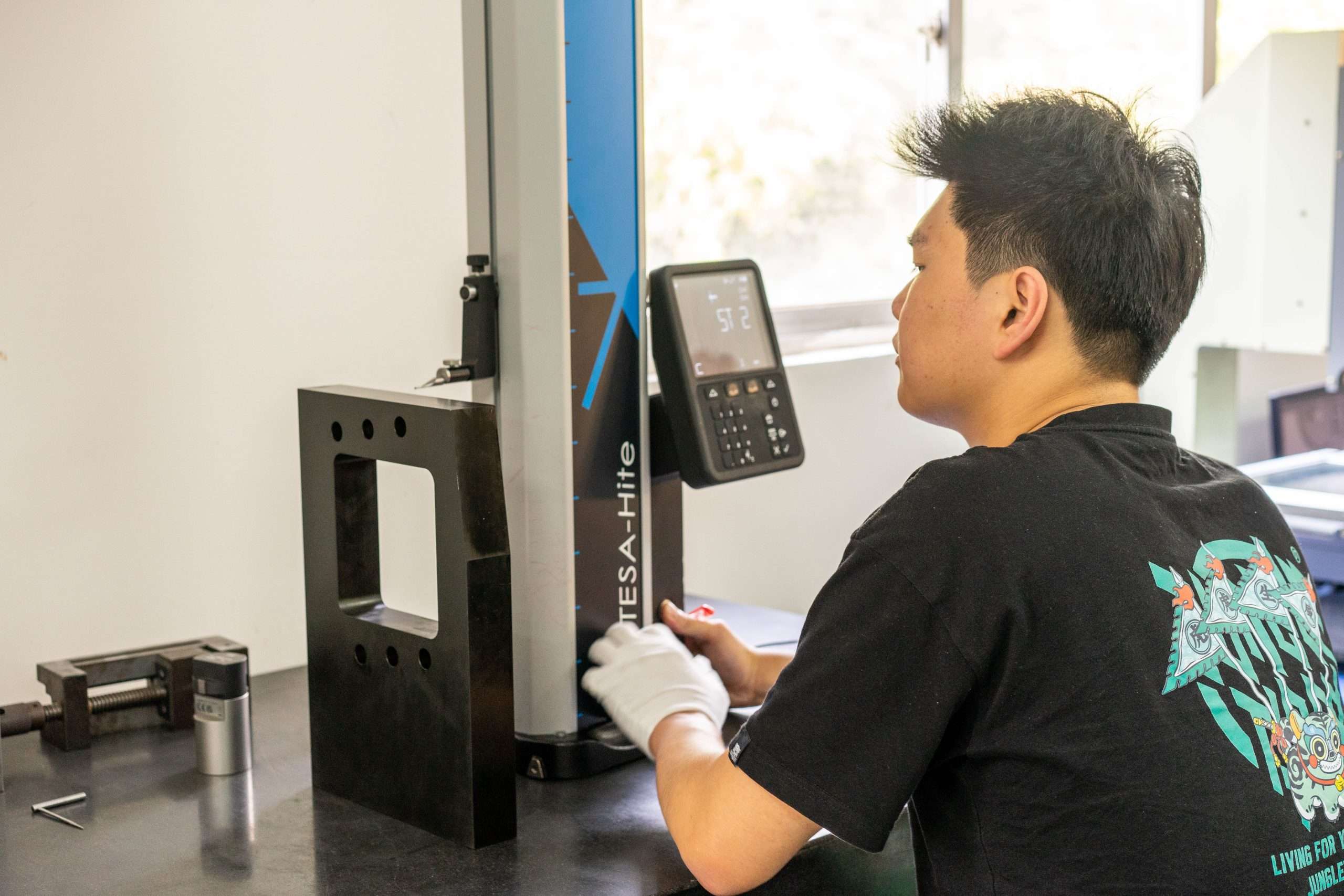

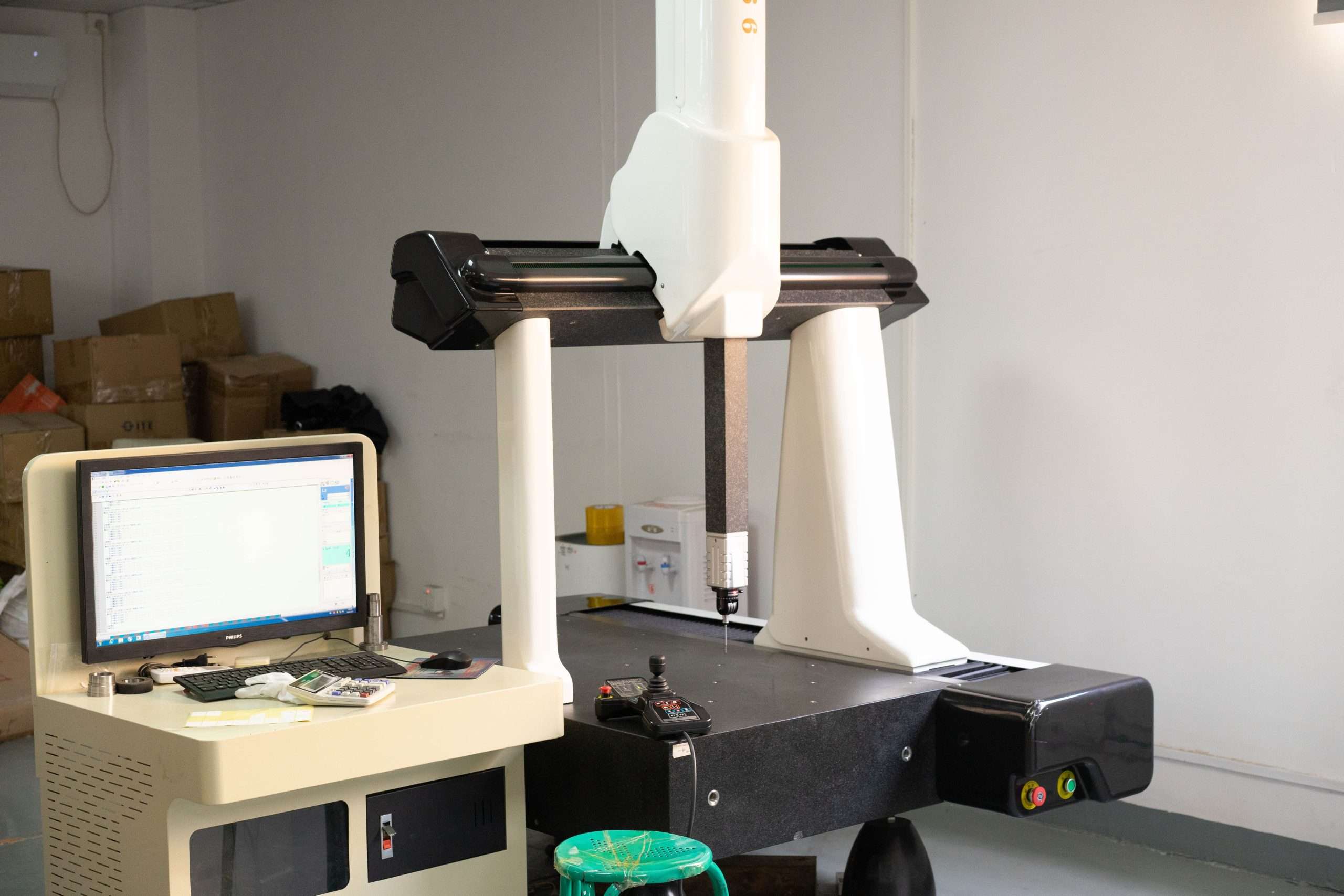

Inspection shown in our own workshop
Direct email
Discuss the inspection needs with the drawing
Send the drawing, quantity, material, finish and the details that matter to your project.
Email HHCNChello@hhcnctech.com
